Applicabiles Industria et scope
| Applicabiles vocs | benzene, toluene, Xylene, Ethanol, Isopropanol, butanol, MEK, mlbk, acetone, cyclohexanone. NMP, issters, propionates, J-issters et variis chlorinated solvendo systems. |
| Applicationem Industries | pingis, printing, pharmaceuticals, semiconductor vestibulum, etc. |
Nota: Polymer et viscosis substantiis in Gas postulo ut tractari in preteratment scaena, aliter non erit causa blockage de adsorbent microporous structuram, unde in defectum ad adsorbent.

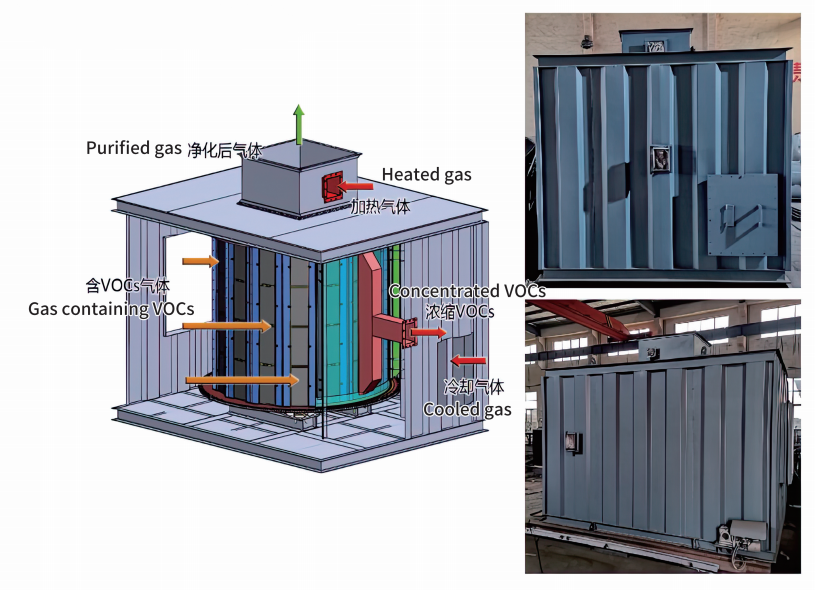

Product structuram
Apparatu features et commoda
I. Excelsus perficientur et efficientiam: usura hydrophobic mocecular siuis bonis adsorption perficientur ut an advorbent potest providere sufficient perficientur ad amplis de vocs types et diversis operationem conditionibus.
II. Processing de altum ferveret punctum solvents: usura hydrophobic zeolite moceular siues, quae non-flammabiles et altus calor repugnans, potest regeneratus ad altum temperaturis. Ideo potest etiam processus excelsum ferveret vocs quod non potest processionaliter ex temperatus limitationem cum per activated ipsum.
III. Inertness: Etiam vocs cum excelsum scelerisque polymerization proprietatibus, ut styrene et Cyclohexanone, potest tractata efficiently usura hydrophobic mocularium habentur.
IV. Purgato et activation: Zeolite Molecular cribrum turntable est omnino anorganica complexu formatae per peccaverit in altum temperatus. Si favum mellis via clausus potest lavari aqua praeter, mulgeular cribrum turntable potest activated ad altum temperatus per calor curatio secundum actualem conditionibus.
Uber numerus
| Lq | TEC | 2000 | 16 | 10 |
| LV Quan turba Products | Variabilis frequency zeolite turntable (tympanum genus) | Tractantem Air Capacity 2000 3000 4000 5000 | Numerus Rotor Sectors 16 20 24 28 36 | Concentration Ratio 5 8 10 |
Exemplum: LQ-TFC-20001610
Interpretatione: LV Quan scriptor tympanum-type zeoluite concentration Turntable processibus in aere volumen 20000m³ / h, habet XVI processus sectiones, et concentration Ratio X temporibus.
PARTIS
| Exemplar | Tracting Air Capacity (NM3 / h) | L (mm) | W (mm) | H (mm) | Pondus (T) |
| LQ-TFC, 20001610 | 20000 | 3200 | 2500 | 2150 | 3.6 |
| LQ-TFC, 25002010 | 25000 | 3450 | 2750 | 2150 | 4.3 |
| LQ-TFC-30002410 | 30000 | 3750 | 3050 | 2150 | 5.1 |
| LQ-TFC-40002410 | 40000 | 3750 | 3050 | 2550 | 5.9 |
| LQ-TFC-50002410 | 50000 | 3750 | 3050 | 2950 | 6.6 |
| LQ-TFC, 60002410 | 60000 | 3750 | 3050 | 3350 | 7.4 |
| LQ-TFC-100003610 | 100000 | 4550 | 3850 | 3750 | 11.8 |
